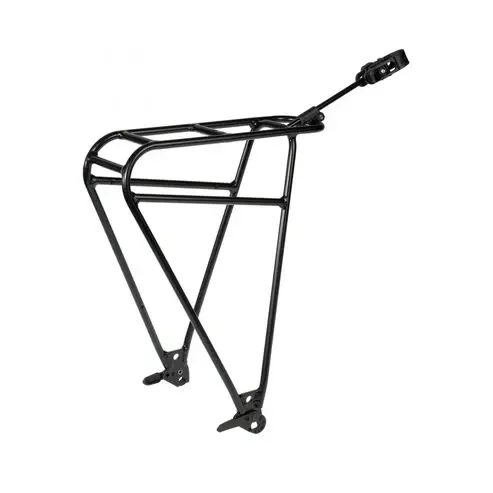

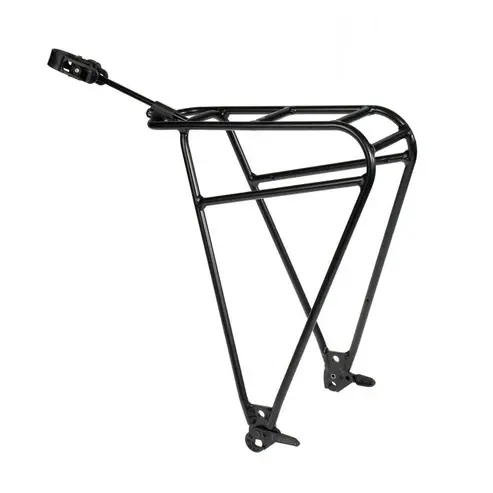

Quick Rack L

Product description

Transform your bike in no time at all from a lightweight bike for sporty tours into a transport bike for shopping and commuting – this way you stay completely flexible. Fifteen seconds is all it takes to mount the practical luggage rack and only five seconds to remove it again. The Quick Rack is of course suitable for use with all of our fixation systems so that you can combine it with any ORTLIEB bag. Thanks to the two hanging levels and a platform, you can also use and fasten panniers and a basket at the same time. The optional mudguards make sure that you keep dry and clean in bad weather too.

Material: Aluminium
Max Load: 20kg
Weight: 580g

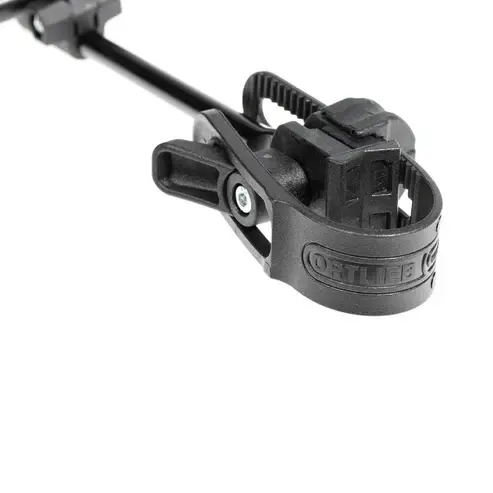

Lightweight luggage carrier with quick release system for fast mounting and dismounting on the bike
5/15 method, 15 seconds for mounting, 5 seconds for dismounting
Quick change from sporty bike to commuter bike
Leaves a clean bike, no fixed luggage rack
Can be used on carbon seat posts and carbon frames with M5 or M6 threads
Can be used on full-suspension bikes
Universally adaptable thanks to different strut lengths
Touring rack with two mounting levels, e.g. for simultaneous use of basket (Top-Lock product) and QL1/2/2.1 side bags
Enables direct attachment of all bags with QL1/2.1/3.1 and Top-Lock system
QL3/3.1 mounting elements can be removed
Suitable for wheel sizes up to 28“/50mm (2”) when mounted via an adapter axle, up to 2.9“/3” when mounted directly or with Seat Stay Adapter
Horizontal and vertical struts with 10 mm tube diameter

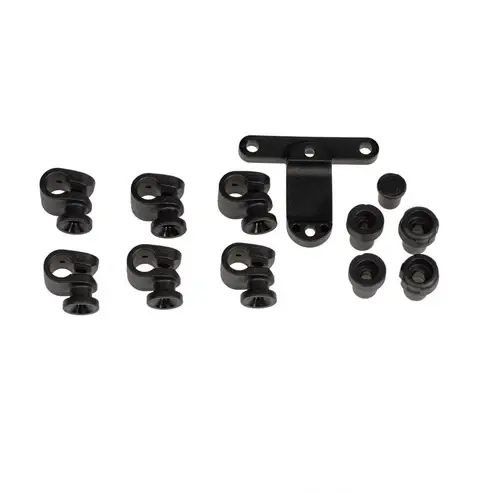

Incl. mounting kit; no additional mounting parts required
Preparation for optional rear light (light not included)
Maximum load 20 kg
