Thru Axle M6-Connector 1.5mm

Product description

FREE SHIPPING - APPLIED AT CHECKOUT

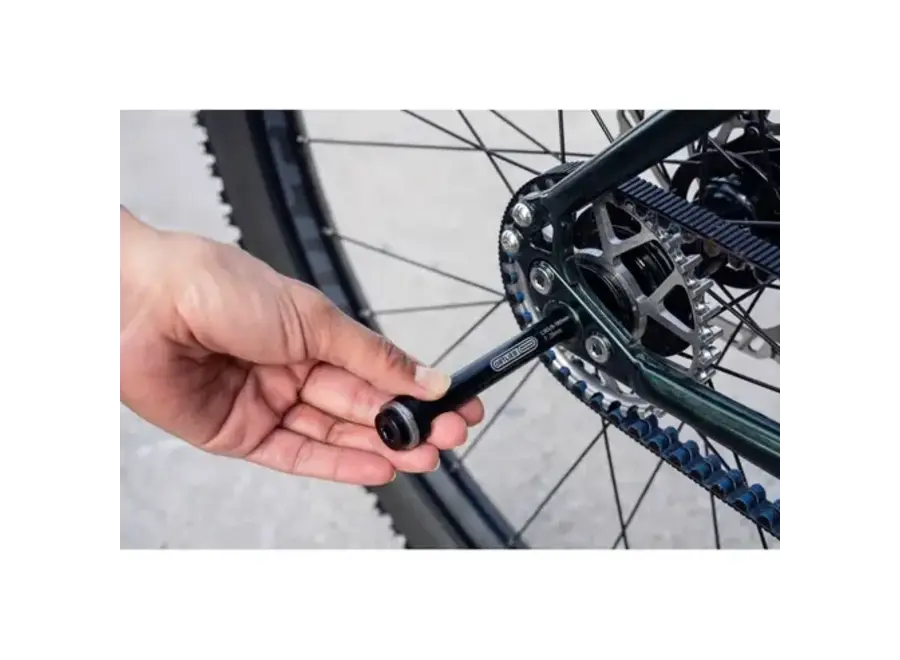

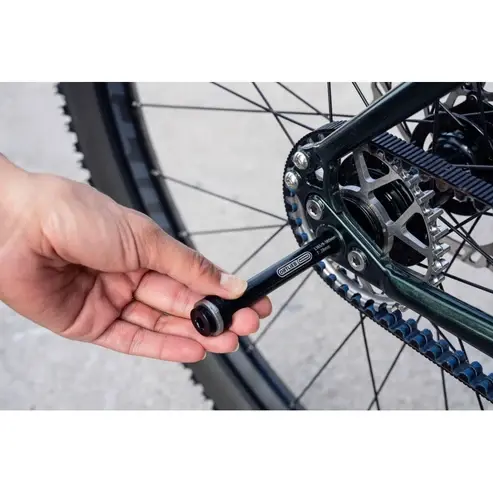

The Thru Axle M6-Connector is a universal adapter thru axle designed for the secure mounting of racks or trailers. Crafted from high-quality aluminum with integrated M6 threads, it offers exceptional versatility and durability.

This adapter thru axle replaces axles up to 180 mm in length and can be adjusted to fit axle lengths between 165 mm (tapered) and 168 mm to 180 mm using the included spacers. It is also compatible with shorter axle lengths, provided the axle can be screwed through the frame.

Available in three thread pitches and fully compatible with SRAM UDH/Transmission, this thru axle is the ideal solution for demanding applications, ensuring a secure and reliable fit.

Is it compatible with my bike?

The Thru Axle adapter is compatible with all bicycles that have an open M12 thread or a SRAM UDH/Transmission system. Please check the correct thread pitch of your original axle. Further details can be found in the manual.
The Thru Axle is not suitable for bikes with Speed Release threads (double-start threads), such as the ORBEA Terra from model year 2022 or models from BMC and BH.

Can i use it with my existing rack?

Yes, the axle allows secure mounting of many luggage racks with M6 mounts, such as the ORTLIEB Quick Rack or other bolt-on systems with 6 mm eyelets. Ensure a minimum distance of 184 mm between the mounting points and observe your rack’s installation instructions.

Is it suitable for carbon frames?

Yes, the Thru Axle provides a stable and secure way to mount a rack, especially on carbon frames.

What torque should it be tightened to?

Tighten the axle with the torque recommended by the bike manufacturer. Typically, this value is around 10-12 Nm, but it may vary depending on the frame. Make sure to lightly grease the thread.

Width: 18 cm
Weight: 54 g
